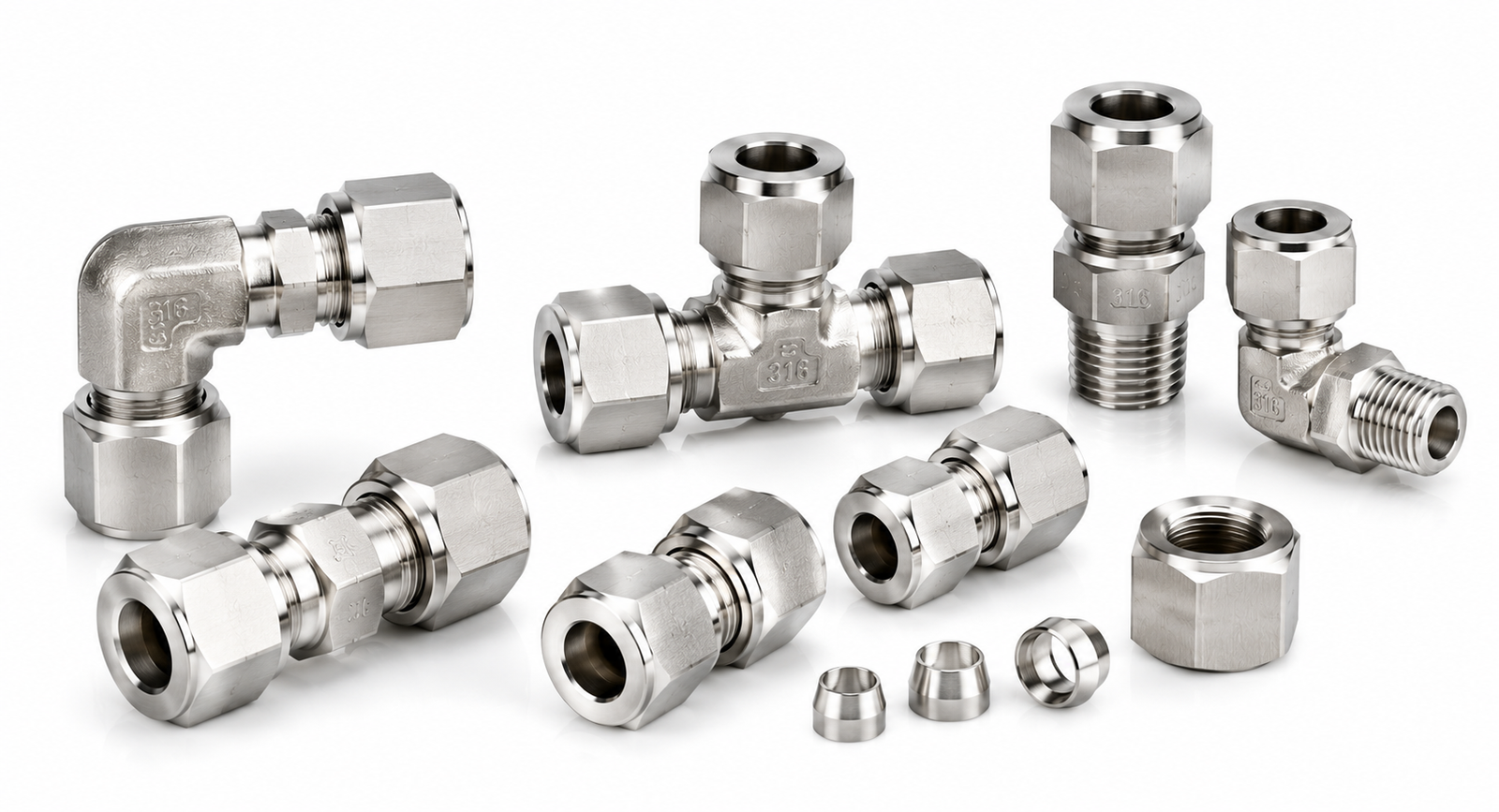

Ferrule Fittings Manufacturer, Supplier & Exporter in India

Ferrule Fittings are essential components for industries that require reliable, high-pressure, and leak-free connections in piping and tubing systems. Infinity Steel Industries LLP is a trusted manufacturer, supplier, stockist, and exporter of high-quality Ferrule Fittings in India, offering a comprehensive range of tube fittings designed to meet the requirements of various industrial applications. Our product range includes different configurations, sizes, and specifications suitable for critical piping and instrumentation systems. Stainless Steel Twin Ferrule Fittings typically consist of key components such as the Nut, Back Ferrule, Front Ferrule, and Body. When properly assembled with tubing, these Stainless Steel Twin Ferrule Compression Fittings provide a secure, vibration-resistant, and leak-proof connection. Our Ferrule Fittings are manufactured using high-quality materials to ensure excellent corrosion resistance, dimensional accuracy, durability, and reliable performance in demanding applications across oil & gas, chemical processing, petrochemical, power generation, pharmaceutical, and other industries.

Ferrule Fittings Grades and Specifications

Standards : ASTM A182, ASTM A276, ASTM A479, ASME B16.11, DIN, ISO

Specifications : ASTM, ASME, DIN, ISO, EN

Size Range : 1/16” to 2” (Custom Sizes Available)

Pressure Rating : Up to 10,000 PSI (Depending on Size & Material)

Manufacturing Process : Forged, CNC Machined, Precision Turned

Finish : Polished, Electro-Polished, Passivated

Material Grades : SS 304, 304L, 316, 316L, 316Ti, 321, 310, 904L, Duplex, Super Duplex, Monel, Inconel, Hastelloy

Types : Single Ferrule, Double Ferrule, Tube to Tube, Tube to Male, Tube to Female, Bulkhead Type

Form : Elbow, Tee, Union, Connector, Adapter, Reducer

Application : Instrumentation Lines, Hydraulic Systems, Gas & Chemical Lines, Oil & Gas, Petrochemical, Power Plants

Ferrule Fittings We Have Available

SS 304 / 316 Ferrule Fittings
Double Ferrule Compression Fittings
Instrumentation Tube Fittings
Hydraulic Ferrule Fittings
High Pressure Ferrule Fittings
Bulkhead & Panel Mount Fittings
Male & Female Connector Fittings
Reducing Union & Elbow Fittings
Custom Drawing-Based Fittings

Double SS Ferrule Fittings Construction, Benefits & Applications

Ferrule Fittings, particularly Stainless Steel Double Ferrule Fittings, are widely used in industries that require secure fluid transfer over long pipeline networks. These fittings provide a firm grip and dependable sealing between connected pipes and tubes, even under high pressure and temperature conditions. As a trusted SS Ferrule Tube Fittings manufacturer in India, Infinity Steel Industries LLP recommends Stainless Steel Double Ferrule Compression Fittings for their durability, corrosion resistance, and superior mechanical strength. Our stainless steel ferrule fittings are available in various grades to suit different industrial environments, offering advantages such as excellent resistance to corrosion, high strength, and long service life. These features make them highly beneficial for industries including oil & gas, petrochemical, power plants, instrumentation, and process industries.

What is Ferrule Fittings?

Ferrule fittings are a type of pipe fitting used to create leak-tight connections in fluid systems. They consist of a fitting body, a nut, and a ferrule, which is a small, tapered metal ring. During installation, the ferrule is compressed onto the tubing, creating a tight seal that can withstand high pressures, vibrations, and temperature fluctuations. Ferrule tube fittings are known as Instrumentation Tube Fittings, Tube Fittings, and Compression Tube Fittings. We deal in Single Ferrule Tube fittings, Double Ferrule Tube Fittings, and many more for their versatility, durability, and resistance to corrosion, making them widely used in various industries for applications that require reliable fluid transfer and connection integrity.

Ferrule Fittings Types

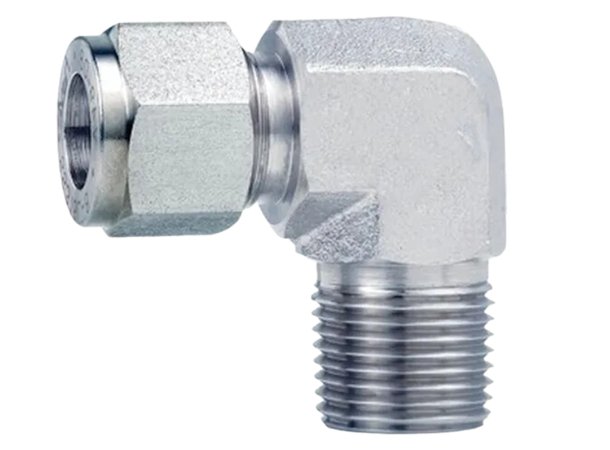

Male Elbow

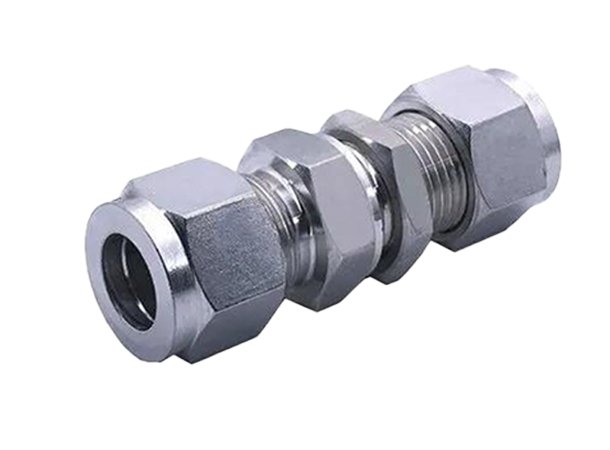

Bulk Head Union

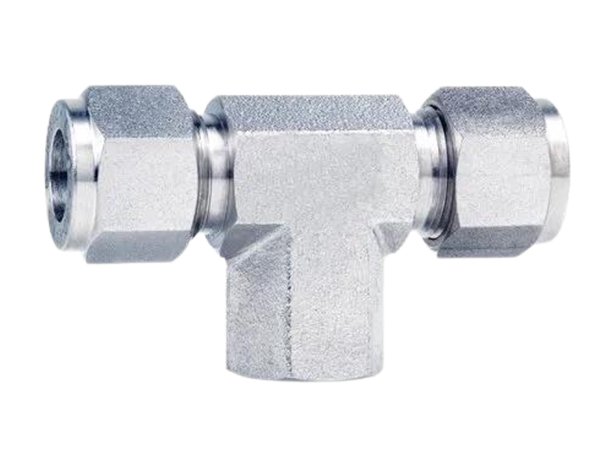

Female Branch Tee

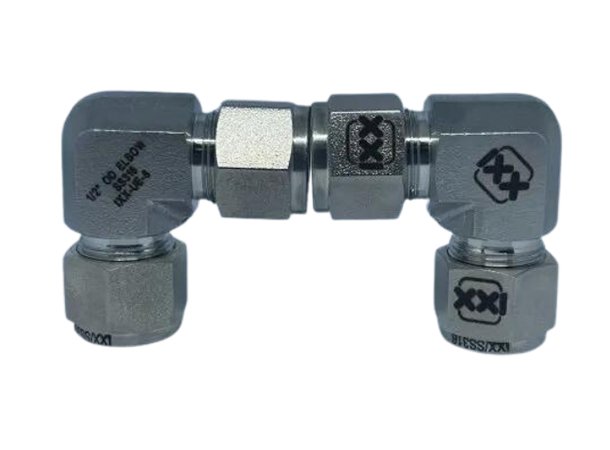

Equal Elbow

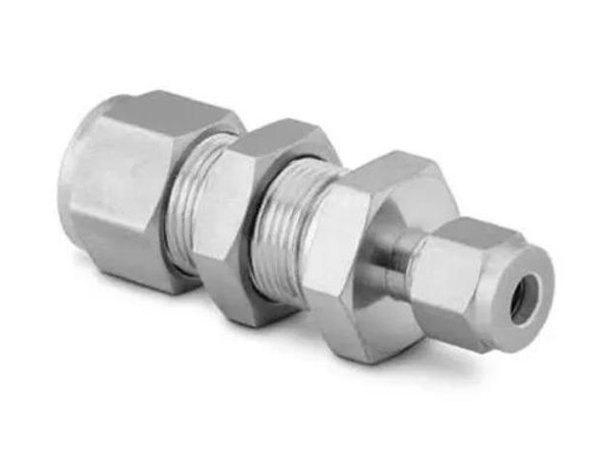

Bulk Head Reducing Union

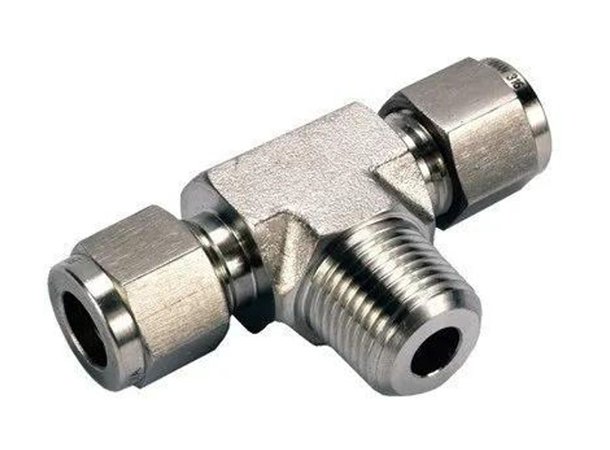

Male Branch Tee

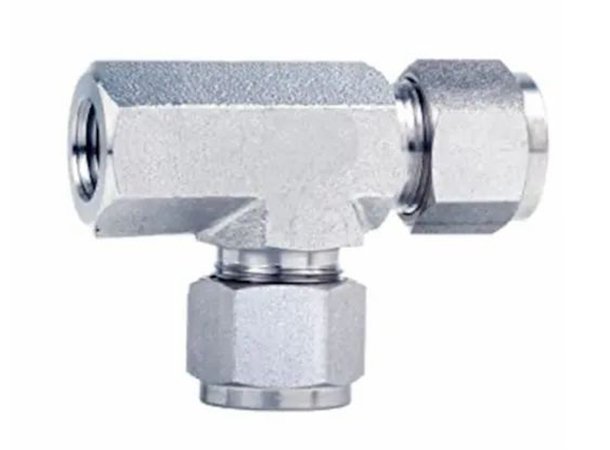

Female Run Tee

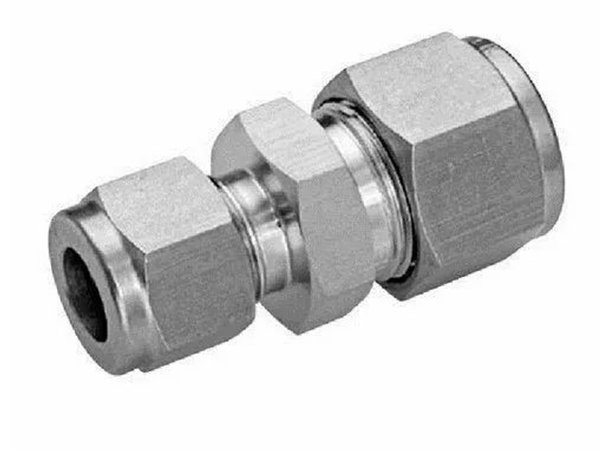

Reducing Union

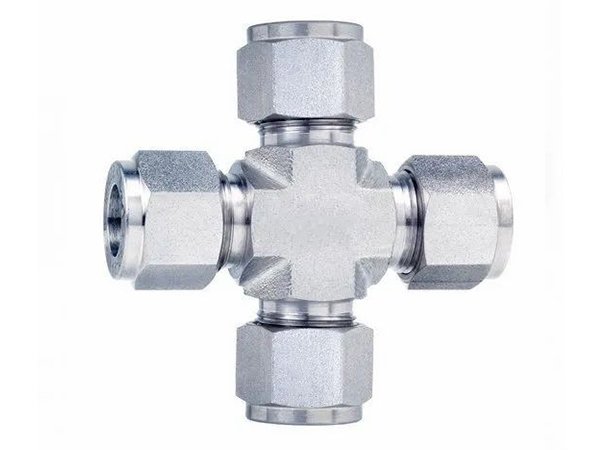

Union Cross

Male Branch Tee

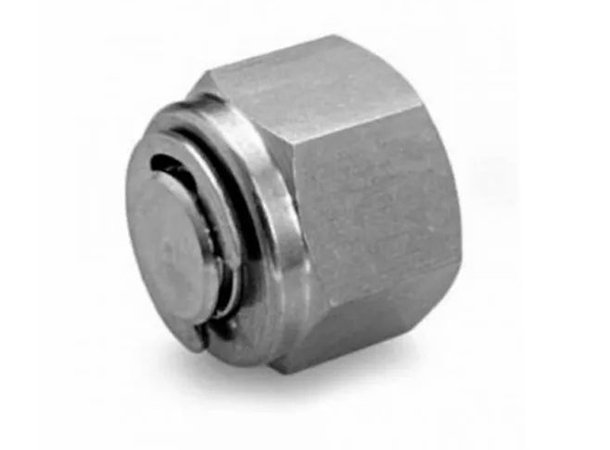

Tube Plug

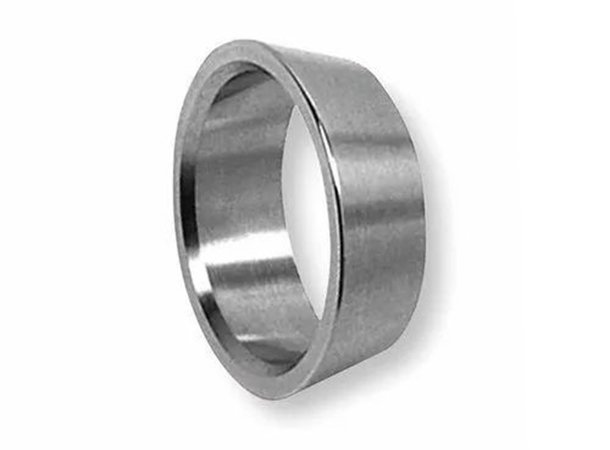

Front Ferrule

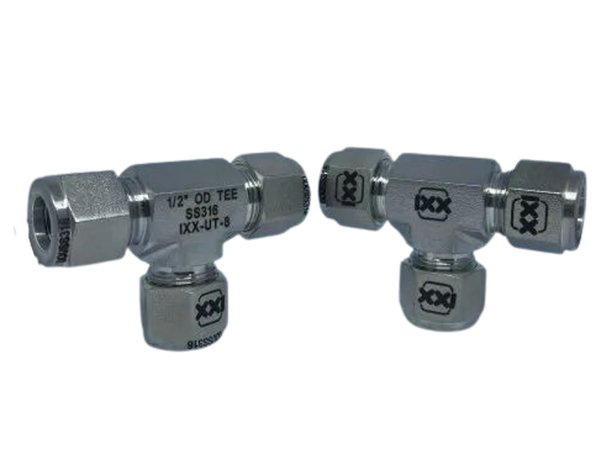

Equal Tee

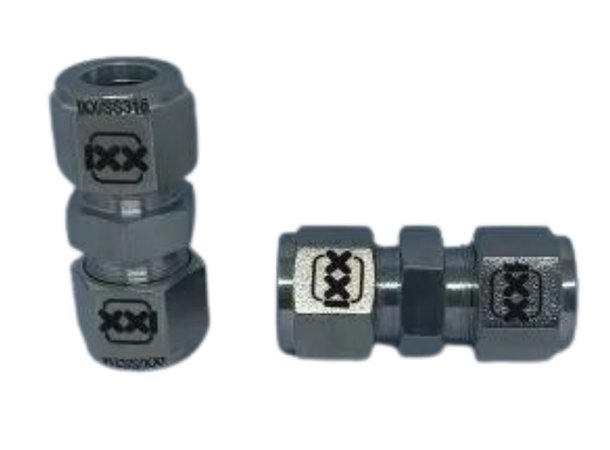

Tube Union

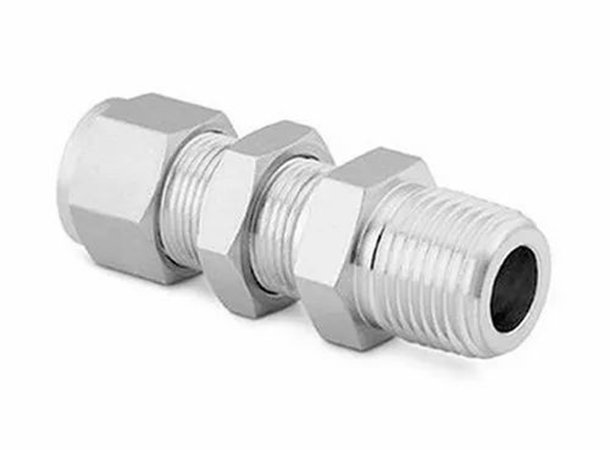

Bulkhead Male Connector

Front Ferrule

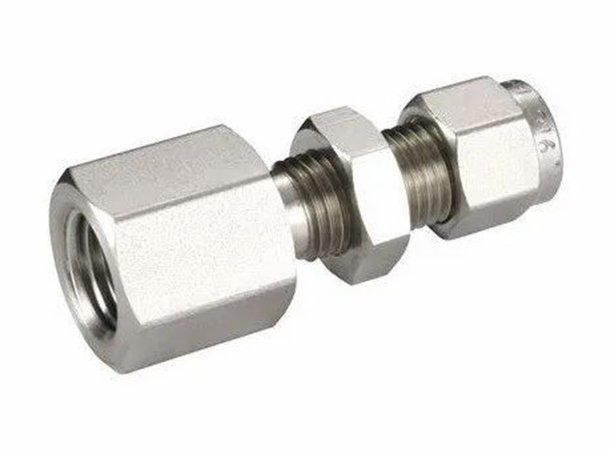

Bulkhead Female Connector

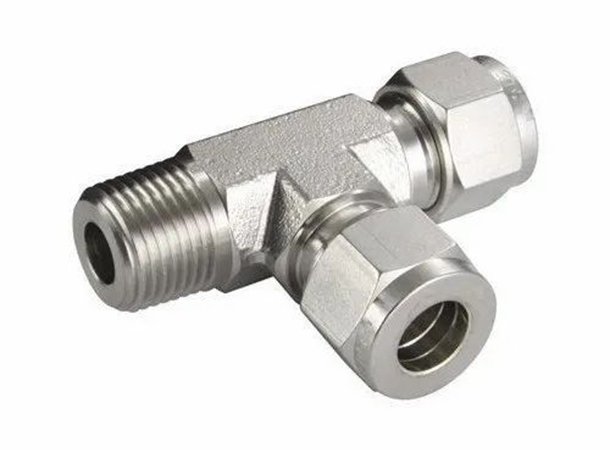

Male Run Tee

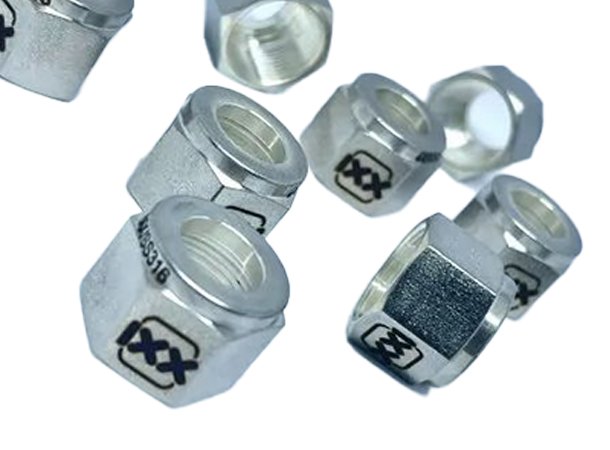

Nut

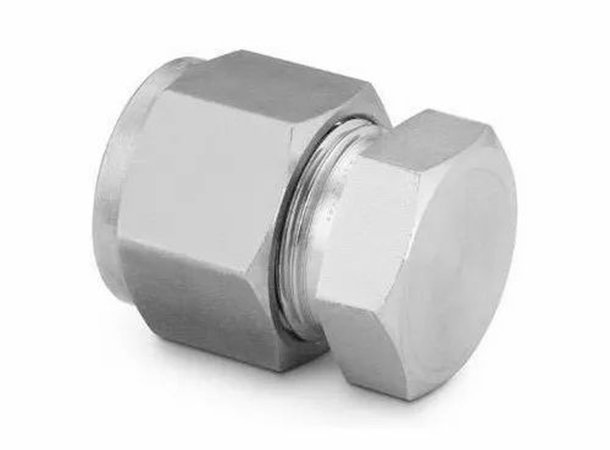

Tube Cap

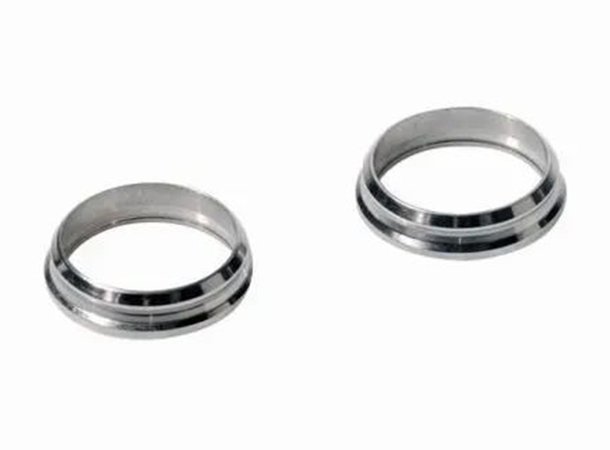

Back Ferrule

Double/Twin Ferrule Fittings Standard Configration

Working Pressure	6000 psi Tube to Tube – Straight, Elbow, Tee, Cross, Bulkhead
Tube to Male	Male Stub, Male Elbow, Male Tee
Female Connector	Female Straight, Elbow, Tee
Positionable Fittings	Elbow & Tee (Swivel)
Tube Closure	Plug Cap
Components	Weld Connector, Nut & Ferrule Set
System Feature	Leak Proof and Interlocking System

Stainless Steel Ferrule Fittings Sizes, Materials, and Grades

Specification	Details
Fittings Size	1/16" OD to 2" OD, OD to 50 mm OD
Stainless Steel Grades	304, 304L, 316, 316L, 316Ti, 321, 347H, 310S, 317L, 904L
Thread Types	NPT / NPTF Threads, BSP Thread, JIS Tapered Pipe Thread (PT), SAE Thread, Metric Tapered / Parallel Thread
Pressure Rating	300 / 1000 / 3000 PSI (Brass) 6000 PSI (Stainless Steel)

Stainless Steel Ferrule Fittings Sizes

Tube Type	Specification	Details
Fractional Tube	Size	1/16" OD to 2" OD, OD to 50 mm OD
	Pressure Rating	300 / 1000 / 3000 PSI (Brass) 6000 PSI (Stainless Steel)
	Threads	NPT / NPTF Threads, BSP Thread, JIS Tapered Pipe Thread (PT), SAE Thread, Metric Tapered / Parallel Thread
Metric Tube	Size	1/16" OD to 2" OD, OD to 50 mm OD
	Pressure Rating	300 / 1000 / 3000 PSI (Brass) 6000 PSI (Stainless Steel)
	Threads	NPT / NPTF Threads, BSP Thread, JIS Tapered Pipe Thread (PT), SAE Thread, Metric Tapered / Parallel Thread

Ferrule Fittings Dimensions

Tube O.D. (in.)	Basic Ordering Number	Dimensions (mm)					Interchanges With
Tube O.D. (in.)	Basic Ordering Number	L	C	G	F	E	Interchanges With
1/16	-TTT-S1	17.8	8.6	7.9	9.5	1.3	-100-3
1/8	-TTT-S2	22.4	12.7	11.1	9.5	2.3	-200-3
3/16	-TTT-S3	24.4	13.7	12.7	11.1	3.0	-300-3
1/4	-TTT-S4	26.9	15.2	14.3	12.7	4.8	-400-3
5/16	-TTT-S5	29.7	16.2	15.9	15.9	6.4	-500-3
3/8	-TTT-S6	30.5	16.8	17.5	15.9	7.1	-600-3
1/2	-TTT-S8	36.1	22.9	22.2	20.6	10.4	-810-3
5/8	-TTT-S10	38.9	24.4	25.4	25.4	12.7	-1010-3
3/4	-TTT-S12	39.9	24.4	28.6	27.0	15.7	-1210-3
7/8	-TTT-S14	44.7	25.9	31.8	34.9	18.3	-1410-3
1	-TTT-S16	49.0	31.2	38.1	34.9	22.4	-1610-3
1-1/8	-TTT-S18	55.1	31.2	46.0	42.9	24.6	-1810-3
1-1/4	-TTT-S20	66.5	41.1	47.6	42.9	27.7	-2000-3
1-1/2	-TTT-S24	78.0	50.0	57.2	50.8	34.0	-2400-3

Client Projects for Ferrule Fittings Supplier in India:-

We regularly supply ferrule fittings to major industrial cities across India. Our clientele covers more than 55 cities in India and 33 countries worldwide. We are recognized as a reliable Ferrule Fittings Manufacturer, Supplier, and Exporter.

Product Supplied	City
Stainless Steel Ferrule Fittings for Instrumentation Lines	Mumbai, Maharashtra
Double Ferrule Compression Fittings for Oil & Gas Industry	Hyderabad, Telangana
High Pressure Ferrule Tube Fittings for Power Plants	Bangalore, Karnataka
Duplex / Super Duplex Ferrule Fittings for Chemical Industry	Surat, Gujarat
